Agent Executions & Monitoring

Understanding agent execution and real-time monitoring is essential for debugging, auditing, and optimizing your intelligent workflows. Forjinn provides a robust interface and API for examining how agents make decisions, what data they access, and how their actions influence results.

Ways to Access Executions

Forjinn offers multiple interface options for building and monitoring agents:

• Chat Builder (/app) — The recommended conversational interface. Describe what you want and the AI guides you through building and testing agents. Access execution history from the Dashboard tab.
• Langflow (/agentflows) — Visual node-based canvas for designing complex agent workflows and chains.
• Executions (/executions) — Dedicated page to view run history, traces, and performance metrics across all your agents.
• Assistants (/assistants) — Configure AI assistants, supporting both Custom and OpenAI assistants with execution tracking.

What is an Agent Execution?

An Agent Execution refers to one complete run or transaction through an agent-powered workflow. This may span:

• A single prompt/response cycle,
• Multi-step problem-solving with tool/chain calls,
• Multi-agent communication and orchestration (for Supervisor/Worker patterns).

Execution Monitoring Features

1. Execution Logs

• Access execution history for any agent from the Executions page at /executions or the Dashboard tab in Chat Builder.
• Each run includes: start/end time, input parameters, decision path, tool calls, outputs, and all intermediate data ("trace").

2. Real-time Monitoring

• During live execution, use the UI to view "steps" as the agent makes tool calls, waits for user input, or branches based on conditions.
• Streaming Output: If chat output is configured for streaming (via SSE), you see responses and reasoning unfold in real time.

3. Metrics & Usage Stats

• Track:
  • Number of invocations (per agent, user, or workspace)
  • Duration/timing per execution
  • Token counts and model usage
  • Rate limits, failures, retries
• Visual charts are available in the Monitoring and Analytics sections.

4. Tool Call & Reasoning Trace

• For each execution, view a tree/log of:
  • User input
  • Agent internal "thoughts" (reasoning text, if available)
  • Tool call names, parameters, outputs, response times
  • Branches taken on conditions and returned results
• Useful for understanding complex ReAct or tool-using agents.

5. Error & Exception Handling

• If an execution fails, details are captured:
  • Error type/message
  • Failing node/tool name
  • Stacktrace if available (for custom node failures)
• Failed runs are flagged, and can trigger notifications via webhooks or integrations.

Using the UI

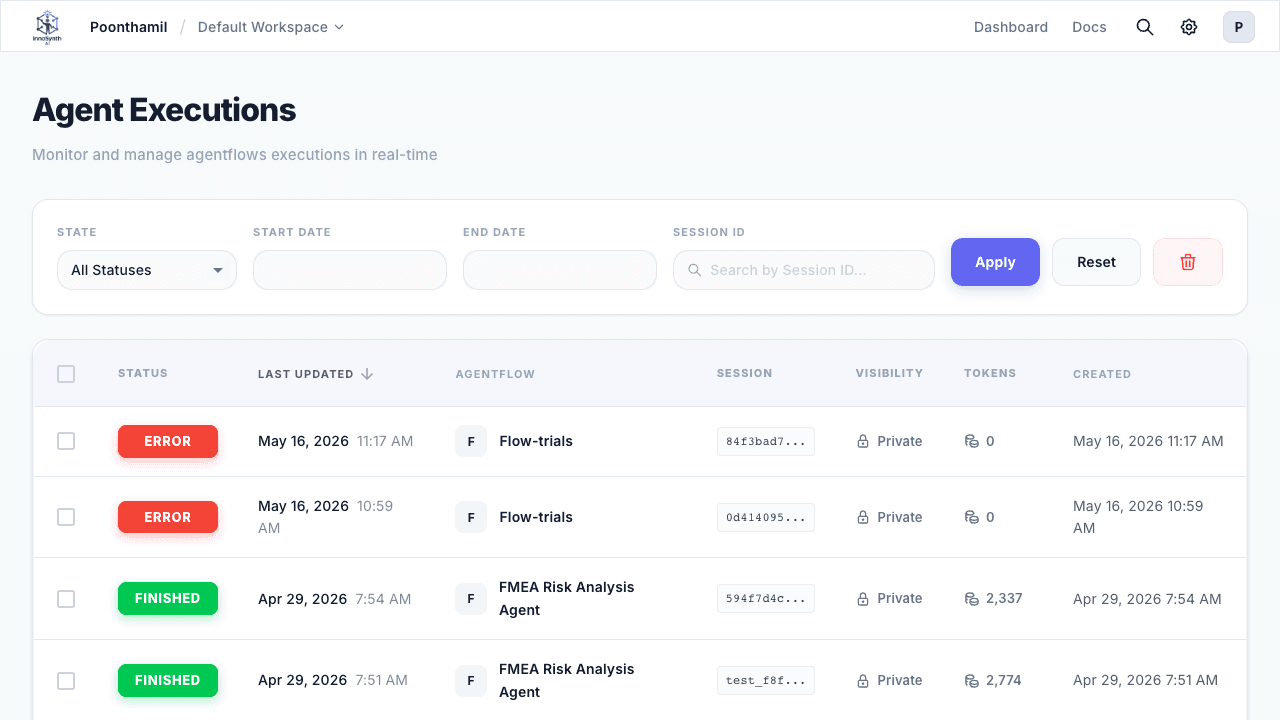

Executions Page (/executions)

Navigate to the dedicated Executions page to:

• Filter executions by agent, date, user, status (success, failed, in progress).
• Click any row to expand full step-by-step logs and preview all inputs/outputs.
• Use download/export for logs (JSON/CSV) for external analysis or reporting.

Chat Builder (/app)

• Use the Dashboard tab to view recent executions for agents built or managed through Chat Builder.
• Start a natural language conversation to create, modify, or test agents, with instant execution feedback.

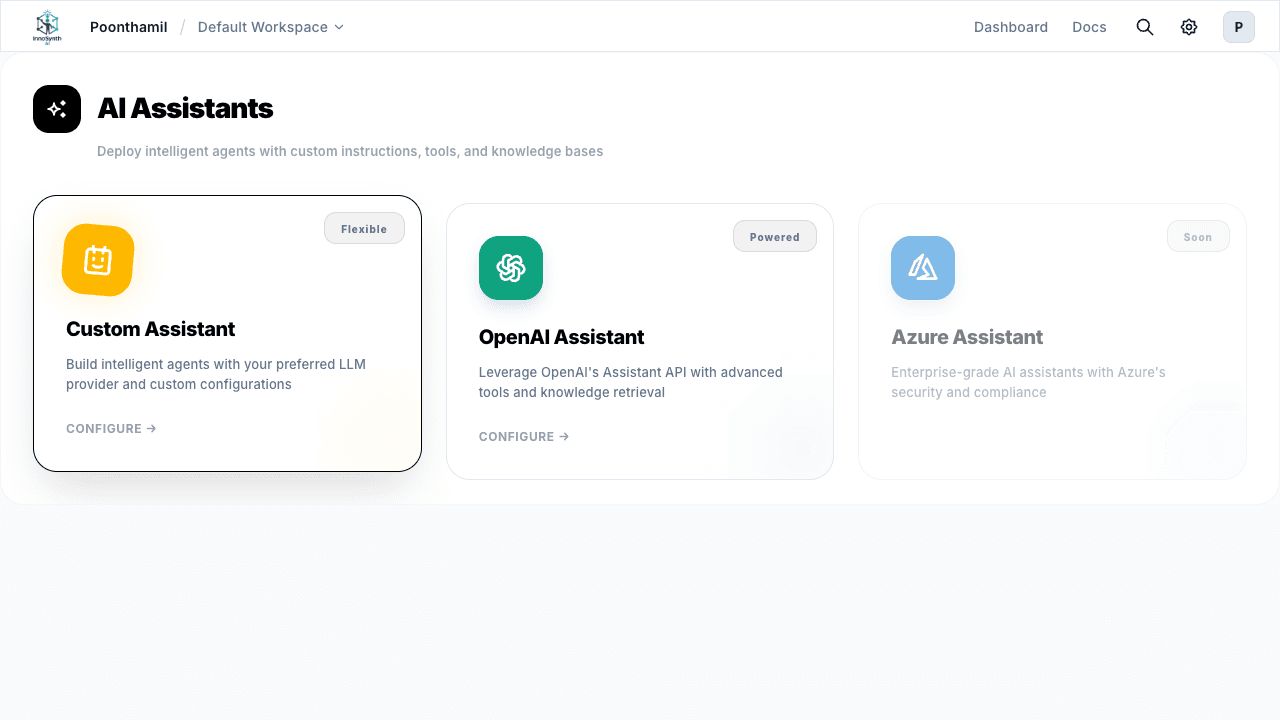

Assistants (/assistants)

• Manage both Custom and OpenAI assistants from a unified interface.
• Track execution history and performance for each assistant configuration.

Monitoring with the API

• Use REST endpoints to fetch execution logs and statuses.

  GET /api/v1/agent-executions?agentId=<id>&status=failed
  GET /api/v1/agent-executions/<executionId>

• Integrate with external analytics (e.g., LangFuse, Arize, LangSmith) via platform hooks.

Advanced: Tracing Inter-Agent Communication

For multi-agent/supervisor patterns:

• Each message, request, or tool call between agents is logged with correlation IDs.
• Step/chain calls are linked so you can reconstruct the sequence across agents and tools.

Best Practices

• Use descriptive labels for agents and tools, so logs are readable.
• Regularly review error logs to catch model/credential misconfigurations.
• Instrument long-running or complex agent chains with additional Trace nodes or State updates to aid debugging.
• Use the Chat Builder (/app) for quick agent prototyping and immediate execution feedback.
• Leverage the Executions page (/executions) for comprehensive monitoring across all agent types.

---

For more, see Analytics Integration for connecting external monitoring and tracing platforms. For building agents conversationally, explore Chat Builder.
